Drainage - 12 x 12

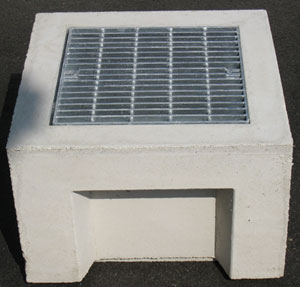

12x12 Drain Box Series
12" x 12" I.D.
View Spec Sheet
• DB1206X - Box - No Frame, 6" - 125 lbs
• DB1212X - Box - No Frame, 12" - 210 lbs
• DB1218X - Box - No Frame, 16" - 145 lbs
• DB1224X - Box - No Frame, 24" - 335 lbs
• DB1206F - Box - with Frame, 6" - 140 lbs
• DB1212F - Box - with Frame, 12" - 225 lbs
• DB1218F - Box - with Frame, 18" - 155 lbs
• DB1224F - Box - with Frame, 24" - 360 lbs
• DB1212B - Base - 120 lbs


Grates and Covers For 12" x 12" Drain Box View Spec Sheet
• DB1212P - Parkway Grate - 31 lbs
• DB1212T - Traffic Grate, Cast Iron - 58 lbs
• DB1212TD - Traffic Diamond Plate Cover - 33 lbs
• DB1212PD - Parkway Diamond Plate Cover - 33 lbs


REG1212 Grate View Spec Sheet
• Traffic Grate for 12" x 12" Drain Box - 22 lbs
ADA1212 Grate View Spec Sheet
• ADA Traffic Grate for 12" x 12" Drain Box - 36 lbs


HHP1212 Grate View Spec Sheet
• High Heel Proof Traffic Grate for 12" x 12" Drain Box - 49 lbs


Drainage - 18 x 18

18x18 Drain Box Series
18" x 18" I.D.
View Spec Sheet
• DB1806X - Box - No Frame, 6" - 225 lbs
• DB1812X - Box - No Frame, 12" - 450 lbs
• DB1818X - Box - No Frame, 16" - 455 lbs
• DB1824X - Box - No Frame, 24" - 615 lbs
• DB1806F - Box - with Frame, 6" - 245 lbs
• DB1812F - Box - with Frame, 12" - 460 lbs
• DB1818F - Box - with Frame, 18" - 470 lbs
• DB1824F - Box - with Frame, 24" - 625 lbs
Grates and Covers For 18" x 18" Drain Box View Spec Sheet
• DB1818P - Parkway Grate - 53 lbs
• DB1818T - Traffic Grate, Cast Iron - 96 lbs
• DB1818TD - Traffic Diamond Plate Cover - 59 lbs
• DB1818PD - Parkway Diamond Plate Cover - 59 lbs


REG1818 Grate View Spec Sheet
• Traffic Grate for 18" x 18" Drain Box - 50 lbs
ADA1818 Grate View Spec Sheet
• ADA Traffic Grate for 18" x 18" Drain Box - 74 lbs


HHP1818 Grate View Spec Sheet
• High Heel Proof Traffic Grate for 18" x 18" Drain Box - 105 lbs


Drainage - 24 x 24

24x24 Drain Box Series
24" x 24" I.D.
View Spec Sheet
• DB2406X - Box - No Frame, 6" - 75 lbs
• DB2412X - Box - No Frame, 12" - 540 lbs
• DB2418X - Box - No Frame, 16" - 635 lbs
• DB2424X - Box - No Frame, 24" - 835 lbs
• DB2406F - Box - with Frame, 6" - 285 lbs
• DB2412F - Box - with Frame, 12" - 550 lbs
• DB2418F - Box - with Frame, 18" -660 lbs
• DB2424F - Box - with Frame, 24" - 825 lbs
Diamond Plate Cover For 24" x 24" Drain Box View Spec Sheet
• DB2424TD Traffic Diamond Plate Cover - 100 lbs
• DB2424PD Parkway Diamond Plate Cover - 100 lbs


REG2424P Grate View Spec Sheet
• Parkway Grate for 24" x 24" Drain Box - 80 lbs
REG2424T Grate View Spec Sheet
• Traffic Grate for 24" x 24" Drain Box - 80 lbs


ADA2424 Grate View Spec Sheet
• ADA Traffic Grate for 24" x 24" Drain Box - 149 lbs
HHP2424 Grate View Spec Sheet
• High Heel Proof Traffic Grate for 24" x 24" Drain Box - 204 lbs


Drainage - 36 x 36

36 x 36 Drain Box Series
36" x 36" I.D.
View Spec Sheet
• 36 x 36 STG - Steel Traffic Grate - 376 lbs
• 36 x 36 SPG - Steel Parkway Grate - 328 lbs
• 36 x 36 DBT - Drain Box Top Section, 6" Increments
  • 6" - 635 lbs
  • 48" - 4,200 lbs
• 36 x 36 DPT - Diamond Traffic Plate Cover - 225 lbs
• 36 x 36 DPP - Diamond Plate Parkway Cover - 180 lbs
• 36 x 36 DBB - Drain Box with Bottom, 6" Increments
  • 24" - 3,275 lbs
  • 48" - 5,375 lbs
Diamond Plate Cover For 36" x 36" Drain Box View Spec Sheet
• DB3636T Traffic Diamond Plate Cover - 230 lbs
• DB3636P Parkway Diamond Plate Cover - 230 lbs


REG3636P Grate View Spec Sheet
• Parkway Grate for 36" x 36" Drain Box - 250 lbs
REG3636T Grate View Spec Sheet
• Traffic Grate for 36" x 36" Drain Box - 247 lbs


ADA3636 Grate View Spec Sheet
• ADA Traffic Grate for 36" x 36" Drain Box - 340 lbs
HHP3636 Grate View Spec Sheet
• High Heel Proof Traffic Grate for 36" x 36" Drain Box
